Whether it is twisters, texturing machines, ring spinning frames, double twisters or cover spinning frames the following requirements are increasingly important for the tangential belt:

• 1) Greatest possible transmission of effective pull while using the technical properties to the fullest

• 2) Reduced noise generation as speeds increase

• 3) Functional reliability, ensuring high productivity

Highly-modular tangential belts are being used increasingly more often, in addition to the reasonably-priced, tried-and-tested tangential belts.

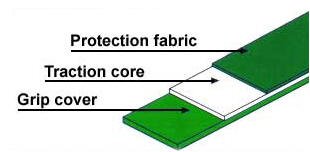

Construction					Traction Layer	Total	Elongation	Min Pulley
¡¡
¡¡	Top Cover		Bottom Cover		¡¡	Thickness	at 1 % strain	Diameter
Material		Color	Material	Color	¡¡	mm	N/mm	mm
BRS170	BR	Dark Green	BR	Red	Polyamide	1.70	5.5	25
BRS230	BR	Dark Green	BR	Red	Polyamide	2.30	5.5	25
BRS250	BR	Dark Green	BR	Red	Polyamide	2.30	11	65
BRS300	BR	Dark Green	BR	Red	Polyamide	3.00	11	65
BRS320	BR	Dark Green	BR	Red	Polyamide	3.20	16	125
BRS400	BR	Dark Green	BR	Red	Polyamide	4.00	16	125

¡¡

Our customer service department will gladly advise you on what is the best solution for your application. Please contact us with the details of the problem and the application you have.
